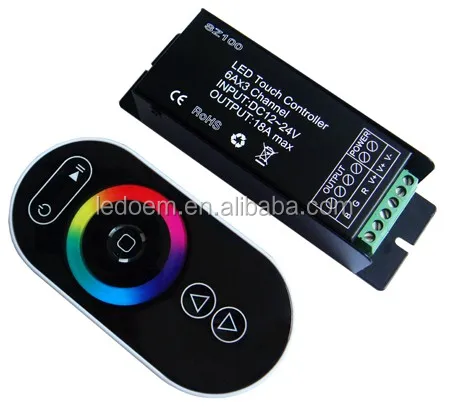

rgb RF touch LED controller

FOB Reference Price:Get Latest Price
$11.50 - $12.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Lamp Power:
14.4W/M
Lamp Luminous Flux(lm):
18-20lm/led
CRI (Ra>):
70
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Lamp Body Material:
Copper
Certification:
CCC, CE, EMC, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
SZ-FS5050-60RGB
Light Source:
LED
Product Name:
DC12 SMD5050 led strip
LED Quantity:
SMD5050, 60 LEDs/m
Warranty:
2 Year
Item Type:
Light Strips
Emitting Color:
Warm White
Color Temperature(CCT):
2700K-3200K
LED Light Source:
SMD5050
Supply Ability
Supply Ability:
15000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
5 meters per roll
Port
Shenzhen
Lead Time :
Shipped in 5 days after payment

Working temperature
-20-60℃
Supply voltage
DC5V,12V~24V
0utput
3 channels
Connecting mode
common anode
External dimension
L127*W41*H32 (mm)
Packing size
L138*W131*H35 (mm)
Net weight
270g
Gross weight
310g
Output gray
256 levels (RGB each)
Output current
<6A(each channel)
Output power
12V:<216W, 24V:<432W
Frequency of RF remote control
433.9MHz

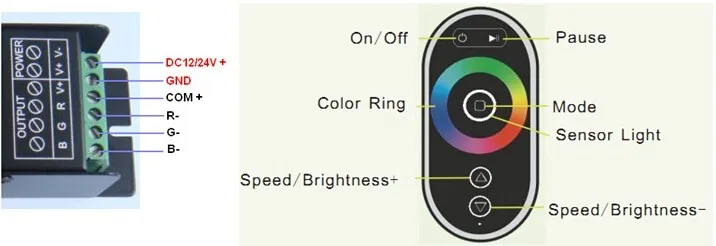

Name of key
Instruction
Remarks
ON/OFF
ON or OFF in any time
Pause
Pause or Continue
Mode
The mode will go to next, when you touch the key each time
21 modes in total.
Speed/Brightness +
The Speed/Brightness will add, when you touch the key each time
Speed for dynamic modes, Brightness for static modes.
Speed/Brightness -
The Speed/Brightness will subtract, when you touch the key each time
Speed for dynamic modes, Brightness for static modes.
Color Ring
Touch any color which you want
No
Patterns
Remarks
1
Static worm white
Brightness is adjustable, speed is unadjustable
2
Static cool white
3
White breath
Speed is adjustable, brightness is unadjustable
4
Seven-color jumpy changing
5
Seven-color smooth
6
Seven-color fade
7
R/B crossfade
8
B/G crossfade
9
G/R cross fade


-Cove lighting
-Architectural lights for canopy, corridor, window, archway
-Backlight or edge lighting for signage
-DIY lights for home use
-Path and contour marking
-Decorative lights for holiday, event, show, exhibition


SZ-FS3528-60
SZ-FS5050-60/120
SZ-FS2835-60/120
SZ-FS5630-60/120
SZ-FS335-60/120
SMD 3528 x 60
SMD 5050 x 60
SMD 5050 x 60/120
SMD5630 x 60/120
SMD 335 x 60/120
5-7lm/LED
14-20lm/LED
20-22lm/LED
45-55lm/LED
6-7lm/LED
4.8W/m
14.4W/m
12W or 24W/m
30W or 60W/m
4.8W or 9.6W/m
Single or RGB color
Single or RGB color
Single color
Single color
Single color
8mm PFC
10mm PFC
8mm PFC
10mm PFC
8mm PFC
DC12V/ 24V
DC12V/ 24V
DC12V/ 24V
DC12V/ 24V
DC12V/ 224V
IP20, IP65, IP67, IP68 waterproof for Option
5m/roll
5m/roll
5m/roll
5m/roll
5m/roll



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
