WS2811 12mm Led Pixel Light String For Channel Letter

FOB Reference Price:Get Latest Price
$0.14 - $0.25 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
LED Modules
Model Number:
SZ-5V-F12-WS2811
Chip Material:
F8 LED DIP
Emitting Color:
Full RGB color
Luminous Intensity:
100
Luminous Flux(lm):
200
Optical Attenuation(%):
0.5
Power:
15
Power Dissipation:
0.3W
Viewing Angle(°):
140
Color Rendering Index(Ra):
80
Color Temperature:
RGB
Operating Temperature(℃):
-30 - 40
Storage Temperature(℃):
-30 - 40
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
NA
Certification:
CE
Product Name:
12mm Dmx Addressable Pixel Led
Voltage:
DC 5V
Cutout size:
12mm
Wire lenght:
10cm
IC chip:
WS2811/UCS1903/SM16703
Software:
LEDedit, Madrix,etc
connector:
3pin / 4pin JST female etc.
IP rate:
IP68 waterproof
Warranty:
2 years
Supply Ability
Supply Ability:
200000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
50pcs/bag
Port
Shenzhen
Lead Time :
Shipped in 5 days after payment
Specification

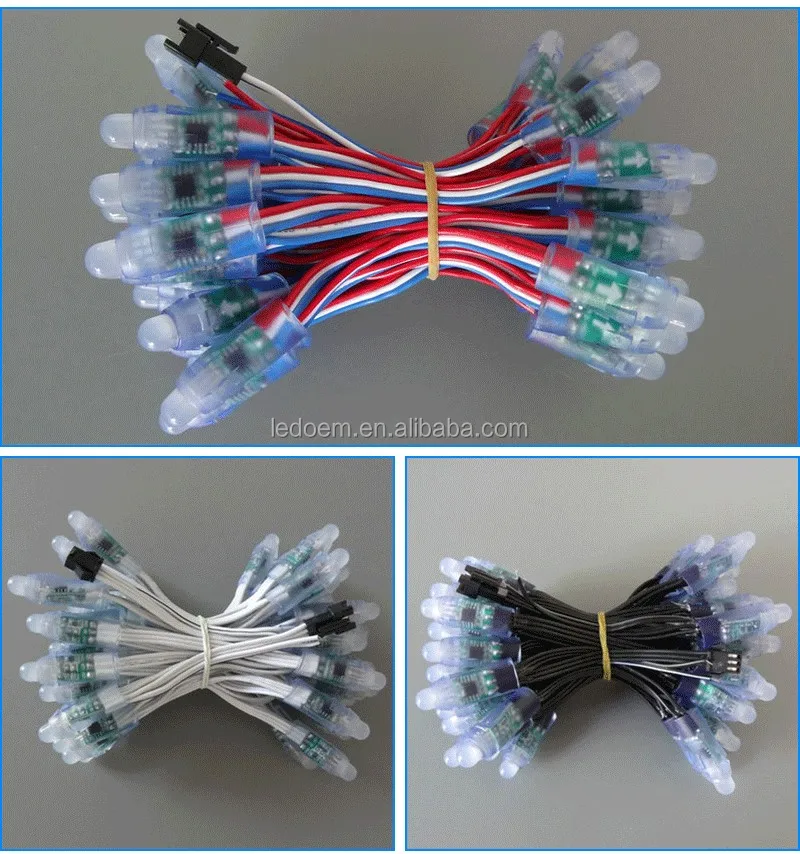

12mm Dmx Addressable Pixel Led features:

1. Individually control: 1 PCS LED pixel & 1 IC
2. IC chip: can be WS2811/ UCS1903/ SM16703 IC .
3. Waterproof: Yes, with full silicon glue waterproof protection.
4. Installation: Easy to install, you'd better drill the hole with 12mm.
5. With features of high brightness, low power dissipation, long lifespan, low Voltage, low decline, colorful.
6. Power supply: You must use a 5V DC power supply to power this pixel, do not use higher than 6V, or you will destroy the entire LED pixel.
7. Connectors: 3PIN or 4PIN JST female and male connectors. Each led pixel is seperate, you can connect them one by one via male and female connectors easliy.
3PIN: DAT, DC5V+, GND-
4PIN: DAT, CLK, DC5V+, GND
8. Factory sales directly, good quality and price, offer 2 years warranty and quickly after-sale service.
9. Color and effect: addressable lights you can set to any color, or animate, like running water,chasing
and scanning etc. depending on the different installation methods may compose different dynamic
effect of different color's character and design
10. Warranty: 2 years

Model No.
SZ-12MM-LP-1FCW-WS2811-5V (round and square shape option)
LEDs
F8 LED DIP
IC chips
WS2811/UCS1903/SM16703 optional
IP rates
IP68 waterproof
Input voltage
DC 5V/ 12V
Power
0.3W

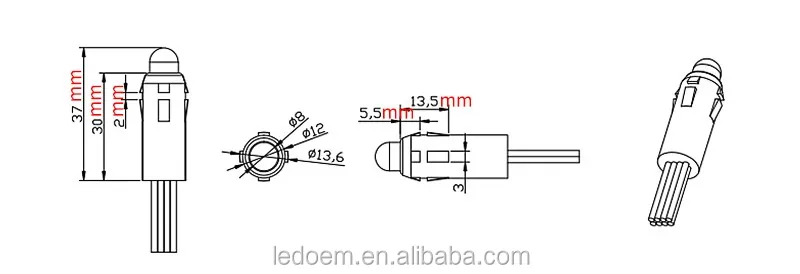

Dimension
12mm cutout
Wire length
10cm
Connectors
3PIN or 4PIN JST female and male connectors
Package
50pcs/strings

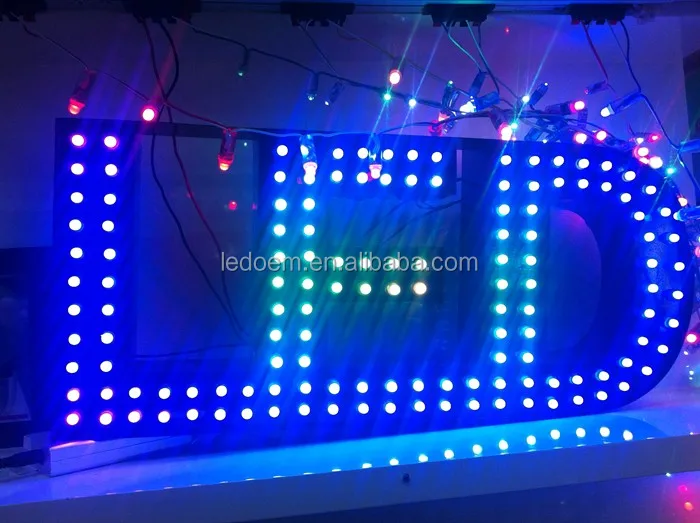

Lighting performance
Applications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
